Fan less cooling tower is function that without driven motor and fan . Its naturally cooling process towers . Hot Water comes from the processing area input to pipe at the top area . Water will be spraying at high velocity stream in some circumferential area . So water goes to sprayed downwardly .Here cooling tower range and approach formulae was applicable. Sometimes water flow will be higher ,cooling range was extremely good and otherwise have cooling range is normal . Baffles Cooling Systems , Fanless cooling tower made up of Maximum covered with FRP louver . FRP ( Fibre reinforcement Plastics ) has been very strength compare than steel plates. We have experienced design team analyze the tower size , Cooling tower approach , Cooling tower range , Cooling tower performance etc., Structural will be made of 100 % Galvanized . So all the seasons ,material will not affected. Main advantage of this cooling tower No fan . So don’t need driving motor .Its hot water cooling by atmospheric air . Nozzle provide at the top of the area on typically. We offered Natural Draft Major Spare parts :  FRP Louver  Galvanized Structural Steels  SS Fasteners  Nozzle Pipes  Spraying Nozzles Applications :  Oil Refineries Plants  Chemical Plants  Petrochemical Plants  Thermal Power Stations  HVAC Industries

Cooling tower is a heat rejection device . In all the sectors has been used in this type of FRP cooling tower.Its main function is that removing heat from the hot water.In machinery process, hot water comes from the machine into cooling tower . It will be decrease the temperature at Atmospheric range and again the same water is to used for recycling purpose . Nowadays customer is preferred in this type of FRP cooling tower.FRP means FIBRE REINFORCEMENT PLASTICS.FRP cooling tower has been recently developed material for extra strengthening purpose. Its main advantage is very strength.FRP coating cooling tower can be 2 to 10 times stronger than steel plates and while their weight is just 20% of that steel. Baffles cooling Systems to dedicate and specialized design for FRP COOLING TOWER . We have designed FRP cooling tower as per the customer requirement specification. Our design teams analyze and calculate the process design . We have 10 TR to 1000 TR and above 1000 TR we will connect serial connection. FRP Cooling Tower better features and performance : • We have small size to bigger size of the FRP Cooling tower. Product range from 10 TR ,15 TR , 20 TR, 25 TR ,30 TR , 50 TR ,80 TR , 100 TR, 150 TR, 200 TR, 250 TR, 300 TR, 350 TR, 400 TR, 500 TR ,800 TR, 1000 TR . • We have experienced FRP molders .So FRP has been strong bonding of fibre matrix with Resin matrix. • Its easily remove the heat from the process. Heat dissipation easily will be conducting. • All the steel material to be GALVANIZED for anti corrosion purpose. • We have experienced FRP COOLING TOWER ERECTION TEAM . So easily erection and commissioning for avoiding extra days for run the process. • We monitoring periodically maintenance and asking performance to supplied FRP cooling tower . Advantage of FRP cooling tower :  Corrosion resistance  Light Weight  Electromagnetic Neutrality  Thermal insulation  Against De-Scaling  Structure build in any area like sea regions , top of the sealing area. We offer Cooling Tower spare parts : • COOLING TOWER MOTOR ( 0.5 HP,1 HP,1.5HP , 2HP , 3HP,5HP,7.5HP,10 HP,15 HP) • GEOMETRIC FANS ( ALUMINUM / PVC ) ( 4 LEAF , 6 LEAFS) • HUB ( ALUMINUM / PVC ) • SPRINGLER ( ALUMINUM / PVC ) • HONEYCOMB FILLS – HIGH TEMPERATURE RANGE • DRIFFTING FILLS • NOZZLES –PVC • GALVANIZED STEEL STRUCTURE • CT FLANGES Data requirement for FRP Cooling Tower Design : • Volume Flow rate ( LPM ) • Inlet Temperature ( °C ) • Outlet Temperature ( °C ) • Wet Bulb Temperature (°C )

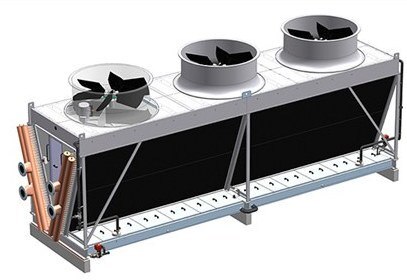

Dry cooling tower is one of the moderate cooling tower. Nowadays customer preferred in this type of cooling tower . Textiles ,Leather , footwear and clothing sectors its very used for in this type cooling tower . Its main advantage is no more water subsequently for continues processing. So need of water requirement is very low compare than other cooling towers and not comes water moisture from coil. Dry cooling tower is made up of no of wounded coil . Coil has designed based on the technical specifications like flow rate and temperature . Coil tube material is copper tube , Stainless steel ( 304 series) and brass tubes .Copper tubes has been bend at the two side of the corner . In this particular bending area make radius form, so water goes to passing continuously without interruption. All the tube connected area must welded by brazing . All the welding done by qualified welders only . Finns are wrapped on the tubes . Finns wrapped based on heat transfer area .So cooling performance will be very high . Dry Cooling tower Features : • Coil mounted on the ISO standard channels . Coils connected with parallel and serial. • Fan and Motor mounted on the top of the frame. Fan has been dynamic balanced with motor rotation of RPM. • After manufacturing coil , BCS would be conducted hydro pressure test for found any leakage on the coil tubes. • Tube bending joints welded by brazed by qualified welders.In this bended area thinning calculated for min thickness at the particular area. • Frames and sheet metal works has been powder coated. • In suction of air passing side fixed grid for security for finns . At the top of the area motor side fixed bird screen grid . • Inlet and Outlet Nozzle are welded with coil , after welding area examined by NDE ( Penetrate test ) . • Hydro pressure test conducted after assembled the cooling tower at 21 kg/cm² ( 300 psi ) . • No need more water consumption . Application area of the DRY COOLING TOWER :  TEXTILE MILLS  KNITTING COMPANY  TARN & THREAD COMPANYS  PRINTING COMPANY  FABRIC  HOSPITALS  MALLS ,THEATRES Data requirement for design construction : • FLOW RATE ( LPM) • INLET TEMPERATURE ( °C ) • OUTLET TEMPERATURE ( °C ) • DBT (°C )

Product Details: Minimum Order Quantity 1 Number Application Food Process Industry, Power Generation, Pharmaceutical industry, Mining & Construction Industry, Hydraulic and Industrial Process Product Specifications Application: Food Process Industry, Pharmaceutical Industry, etc Capacity: Customized Pressure: Customized Cooler Material: Cooper

Product Details: Medium Used Water, Oil Application Hydraulic and Industrial Process, Mining & Construction Industry, Pharmaceutical industry, Food Process Industry, Power Generation Product Specifications Application: Food Process Industry, Pharamaceutical Industry, etc Capacity: Customized Pressure: Customized Cooler Material: Cooper

Product Details: Application Food Process Industry, Power Generation, Mining & Construction Industry, Hydraulic and Industrial Process, Pharmaceutical industry Medium Used Oil, Water Product Specifications Application: Food Process Industry, Pharamaceutical Industry, etc Capacity: Customized Pressure: Customized Cooler Material: Cooper

Product Details: Capacity Customized Pressure Customized Cooler Material Copper Application: Food Process Industry, Pharamaceutical Industry, etc

Product Details: Application Power Generation, Hydraulic and Industrial Process, Mining & Construction Industry, Pharmaceutical industry, Food Process Industry Capacity Customized Product Specifications Application: Food Process Industry, Other Manufacturing Industries Capacity: As per Required Pressure: Customized Cooler Material: Cooper,

Product Details: Medium Used Oil, Air, Water Application Power Generation, Food Process Industry We are a leading organization in this domain, actively engaged in providing a wide array of U Tube Heat Exchanger . Baffles Cooling Systems features in shell and tube heat exchanger : BCS has shell and tube heat exchanger designed as per ASME SEC VIII Div-1 standards and TEMA standards. We have deal in R,C,B application areas. We analyze and calculated the Mechanical design and Thermal Design. Heat Exchanger constructed by ASME Sec –II Part A & B We have qualified welders for all the welding joints positions We have facilities for post weld heat treatment, radiographic. Product Specifications Capacity - 3 TR to 400TR Shell Dia - 4' to 60' Tube Length - 3' x 24' Brand - Baffles. We made the heat exchanger in all the materials like CS, SS 304, 316, 304L, 316L, Titanium, Copper, Aluminium, IS2062, cupro nickel, brass etc.,

Product Details: Range 10mm OD to 50.8 mm OD Outer Diameter 6.00mm to 101.60mm Length 0.70mm to 8.00 mm We are manufactured U Tube Bundle Heat Exchanger. We are specialist for U Bend making as per ASME Standards. We have make all the types of U Tube bended like as Stainless Steel (304, 304 L, 316, 316 L, Copper Tubes (Annealed, Temper Tubes ), Titanium Tubes, Aluminium Tubes, Carbon Steel Tubes SA 213. Our Design department calculated Thinning Calculation of Tube bend as per the Process medium Flow rate requirement. It can be very easily make removable and cleaning. Design Features : Our Team perfectly designed for Exchanger Calculated Thinning calculation as per the ASME Standard Formula on U Bend Portion Perfect suitable space calculating Size for Baffle Plate, Spacer Tubes, Tie Rod Calculated Flow Analysis in CFD Simulation Advantages : One Tube Sheet is used only Two Pass medium Flow. So get More cooling better than fixed type heat exchanger More Efficiency In this type of U Bundle perfectly matched for Kettle Type Re Boiler Low Cost compare than fixed type heat exchanger Easily will do Service and Cleaning

Product Details: Type Induced Draft Air Cooled Heat exchanger Forced Draft Air Cooled Brand Baffles Cooling Systems Air Cooled Heat Exchanger is a device which is used for reducing heat for processing fluid. Its widely used in this type of all the industries. Hot medium passed on Tube side . Hot fluid which is used by cooled by Air . Around on the tubes fins process conduct . We have deal all the type of fins like Extruded , L fins , straight fin ,Wound type of fin ,etc ., Air cooled heat exchangers are used for two primary reasons: 1. They increase plant efficiency 2. They are a "green" solution as compared to cooling towers and shell and tube heat exchangers because they do not require an auxiliary water supply.

Product Details: Application Food Process Industry, Hydraulic and Industrial Process, Power Generation, Mining & Construction Industry Medium Used Water We are offering Small Heat Exchanger to our clients. BCS has shell and tube heat exchanger designed as per ASME SEC VIII Div-1 standards and TEMA standards. We have deal in R,C,B application areas. We analyze and calculated the Mechanical design and Thermal Design. Heat Exchanger constructed by ASME Sec –II Part A & B We have qualified welders for all the welding joints positions We have facilities for post weld heat treatment, radiographic. Product Specifications: Condensation Forms – Water Cooled Type – Steam condenser Material – Aluminium / Copper Structural Form – Horizontal Brand - Baffles We made the heat exchanger in all the materials like CS, SS 304, 316, 304L, 316L, Titanium, Copper, Aluminium, IS2062, cupro nickel, brass etc.
